What is FACSvatar? (v0.4.0-Alpha)¶

FACSvatar is An Open Source Modular Framework for Real-Time FACS based Facial Animation

Or in plain English:

Track facial expressions with any software and visualize that data on any avatar in real-time, powered by the FACS representation. No more need to modify your avatar to support your tracking software. All written in your favorite programming language, on any OS, and across machines.

Muscle image source.

Facial Action Coding System (FACS): A description of how muscle groups in the human face contract/relax to make any facial configuration possible. (learn more).
- Action Unit (AU): The strength of contraction of a single muscle group.
Modular: Software and OS independent. You only need to know what data goes in and what comes out.
Extendable: Write your code, add a ZeroMQ message socket, and let it talk to other modules.
Real-time: Create lively avatars that respond to your user.
Machine/Deep Learning: Input/output data-fied facial configurations.

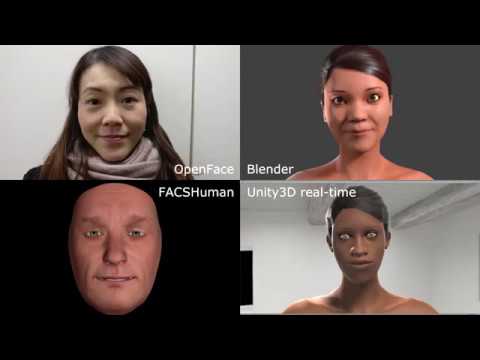

(Above demo video link: https://www.youtube.com/watch?v=J2FvrIl-ypU)

Message to:

Animators: Copy facial expressions from a video/webcam to your avatar.
Affective Computing: Enable Human-Agent Interaction (HAI) by inputting your human-analysis into a ML-model, output FACS values, and have your Embodied Conversational Agent (ECA) display it.
Psychologists: Create stimuli with the same facial configurations across avatars of different sex, age and ethnicity.

FACSvatar is already operable with:

Tracking software:
- OpenFace: Extract facial AUs from videos/webcam.
Visualization software:
- Blender 2.80+
  - MB-Lab 3D avatar generation
- Unity3D
- FACSHuman
Modules for additional data processing, and allowing m trackers - to - n avatars (modules folder)
ZeroMQ: This framework’s glue, allowing modules to communicate with each other.
Containerization with Docker to run FACSvatar modules everywhere.

Disclaimers: This is an open-source project, hopefully being flexible enough for your facial animation needs. This is not software supported by a company / commercially, but by users like you. If you need some new capability, you likely have to code it yourself (or ask/hire someone), but questions for guidance are always welcome (make a GitHub issue)! For commercial usage, please check the license page. Read more about FACSvatar’s limitations (TODO doc link).

Full documentation¶

Read the Docs: https://facsvatar.readthedocs.io/

Paper¶

Please cite the following paper when using this framework in a paper:

van der Struijk, Stef and Huang, Hung-Hsuan and Mirzaei, Maryam Sadat and Nishida, Toyoaki “FACSvatar: An Open Source Modular Framework for Real-Time FACS based Facial Animation” In Proceedings of 18th ACM International Conference on Intelligent Virtual Agents (pp. 159-164). ACM, 2018.

DOI: https://doi.org/10.1145/10.1145/3267851.3267918
ISBN: 978-1-4503-6013-5/18/11

New in v0.4.0-alpha (2020-07-??) TODO UNFINISHED¶

COMPLETE re-write of the documentation: Check it out!
Python modules:
- Standardization pass over all modules / code clean-up
- Consistency fix: ROUTER / DEALER sockets use JSON formatted data
- DOC string per class and function
- Logger instead of print() statements
- Debug as option to enable logger
- File structure for proper import of modules / pip?
- Use config file (in addition to command line arguments) + config filepath argument
Easy run: Docker container per module + Docker Compose
Demo video

See all changelogs

Quickstart¶

FACSvatar is tested on Ubuntu and Windows, but should work on MacOS.

This quickstart has 2 parts:

Start FACSvatar modules using Docker - modules in containers (see here for Python instructions)
Visualize in Unity3D or Blender

Dockerized modules¶

Downloads - Go to the release page of this GitHub repo and download:
- (Real-time only) openface_2.1.0_zeromq.zip
  - Unzip and execute download_models.sh or .ps1 to download trained models
- Windows 7 / 8 / 10 Home version <2004 : unity_FACSvatar_standalone_docker-ip.zip
- Windows 10 Home v2004+ / Pro / Enterprise / Education: unity_FACSvatar_standalone.zip
- Windows / Linux / Mac: Unity3D editor (documentation)
- Source code (zip / tar.gz) or download this repository with:
  - git clone https://github.com/NumesSanguis/FACSvatar.git
  - Press the green Clone or Download button on this page –> Download ZIP
Docker Install - Let’s you execute applications without worrying about OS or programming language.
- General Docker instructions
- Docker Toolbox for Windows 7/8/10 Home version <2004
- Docker for Windows 10 Home v2004+
- Docker for Windows 10 Pro, Enterprise or Education
- Ubuntu: Docker and docker-compose and sudo usermod -a -G docker $USER
Docker Modules - Open a terminal (W7/8: cmd.exe / W10: PowerShell) and navigate to folder FACSvatar/modules, then execute:
1. docker-compose pull (Downloads FACSvatar Docker containers)
2. docker-compose up (Starts downloaded Docker containers)
See visualization engine instructions

Offline version:¶

Open a 2nd terminal in folder FACSvatar/modules and execute: docker-compose exec facsvatar_facsfromcsv bash
Inside Docker container - Start facial animation with: python main.py --pub_ip facsvatar_bridge

With webcam for real-time (Windows-only for now):¶

Navigate inside folder openface_x.x.x_zeromq
(Windows 7/8/10 Home version <2004 - only) Get Docker machine ip by opening a 2nd terminal and execute: docker-machine ip (likely to be 192.168.99.100)
(Windows 7/8/10 Home version <2004 - only) Open config.xml, change <IP>127.0.0.1</IP> to <IP>machine ip from step 3</IP> (<IP>192.168.99.100</IP>) and save and close.
Double click OpenFaceOffline.exe –> menu: File –> Open Webcam
